The Asse 1022 Dual Check Valve is a small-footprint, code-aware solution for potable water backflow protection. It helps prevent contaminants and corrosive substances, such as carbonic acid, from entering drinking water. Using an approved device helps protect potable supplies while supporting compliance with local and national plumbing requirements.

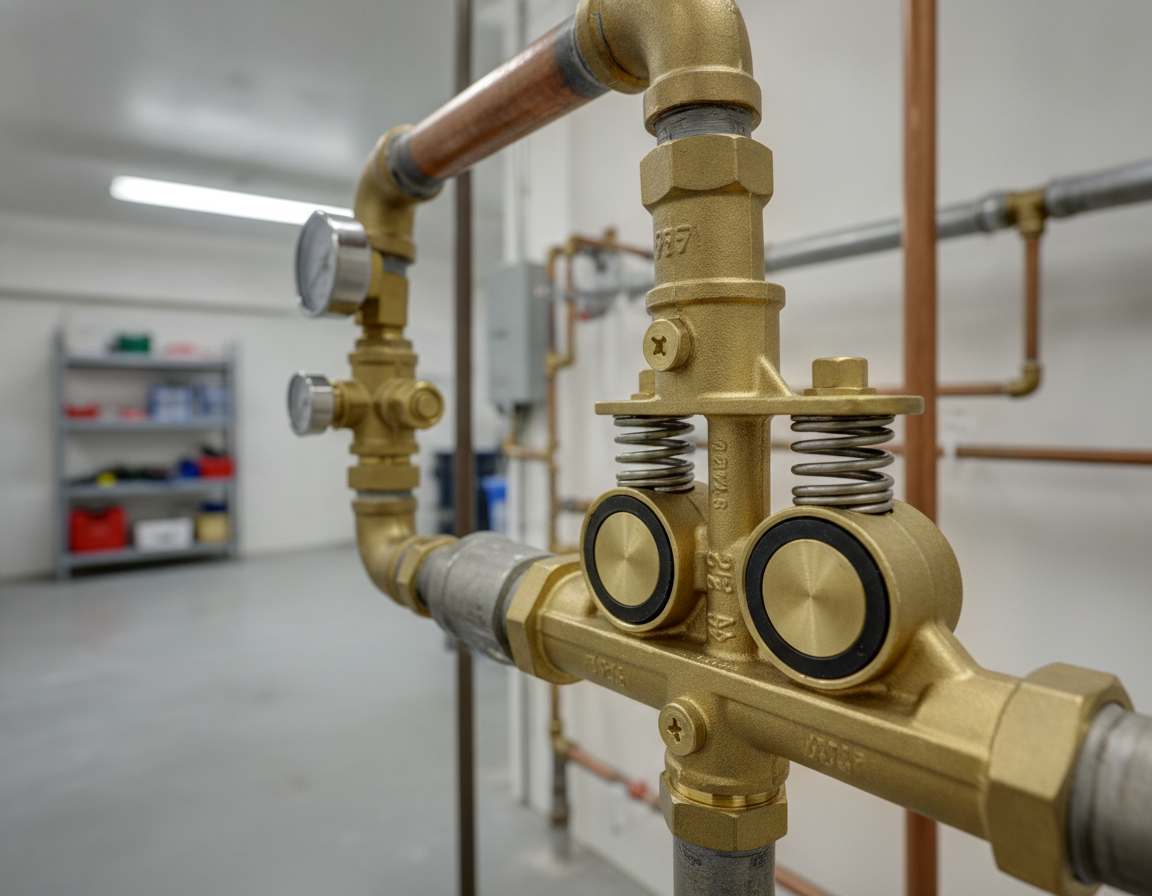

Asse 1022
Backflow preventer manufacturers, including Watts, make devices that are built to meet ASSE performance requirements and recognized certifications. These may include NSF/ANSI 61 and UL/FM approvals. These credentials help confirm that materials will not leach harmful substances and that assemblies can withstand pressure and stress. While some jurisdictions require higher-protection assemblies, the Asse 1022 can serve as a reliable low-hazard option where allowed.
The Asse 1022 Dual Check Valve is valued for its small footprint, simple installation, and low maintenance costs. This guide explains how Asse 1022 devices compare with higher-protection standards such as Asse 1013. It also outlines selection, installation, maintenance, and compliance steps so the unit can meet plumbing-code expectations and industry guidance.
Understanding Backflow And How Dual Check Valves Help
Backflow creates a important risk because water can reverse direction inside a plumbing system. That backward flow may carry contaminants into potable lines and reduce the safety of drinking water. Water authorities and adopted plumbing codes require backflow protection to help prevent this kind of contamination.
Two main hydraulic causes lead to backflow incidents. Backsiphonage occurs when supply pressure drops and creates a vacuum that pulls water backward. Backpressure occurs when pressure on the downstream side becomes greater than supply pressure and pushes water backward. Knowing the difference between backsiphonage and backpressure matters because each condition can call for a different type of protection.
In homes, common cross-connections include irrigation systems, garden hoses, boilers, and chemical injection points. Commercial settings add booster pumps, closed-loop HVAC systems, and process equipment. Without proper protection, these connections can become sources of pollutants.
Dual check valves such as the Asse 1022 are intended for lower-risk backflow protection. They help prevent contaminants that may affect taste or odor but are not considered a direct health risk. The Asse 1022 Backflow Preventer is a compact solution for many applications identified in plumbing codes.
Proper device selection and installation are guided by codes and standards. ASSE performance requirements and ANSI-accredited development support product acceptance. Installers must follow local plumbing code language, including references such as the 2018 UPC and AWWA M-14, when installing Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. When the hazard level is higher, authorities typically require a more protective assembly.
| Issue | Typical Cause | Recommended Protection |
|---|---|---|
| Backsiphonage | Negative supply pressure caused by line breaks, mains work, or heavy demand | Asse 1022 Backflow Preventer or air gap where required |
| Backpressure | Downstream pressure from pumps, tanks, or thermal expansion | Asse 1022 where low-hazard is approved, or RPZ where health hazards exist |
| Potable water contamination risk | Chemical injection, treated boiler water, irrigation additives, or industrial fluids | Assess hazard level; apply Asse 1022 or higher-rated device |
What Backflow Is And How It Happens
Backflow is the backward movement of water from any source into the public supply. It may be caused by negative supply pressure, backsiphonage, or excess downstream pressure. Either condition can allow contaminants to enter potable lines and threaten drinking-water quality.
Why Dual Check Valves Suit Low-Hazard Protection
A dual check valve uses two separate check mechanisms inside a single valve body. That built-in redundancy helps protect low-hazard cross-connections from reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Understanding The Asse 1022 Dual Check Valve
An Asse 1022 Dual Check Valve is a compact backflow prevention device used for low-hazard potable-water applications. It uses two independent spring-loaded checks arranged in series. This arrangement prevents reverse flow and provides redundant sealing. It also supports serviceability while reducing contamination risk during pressure changes, brief backpressure events, or short disruptions.
Key Features And Functional Overview
Spring-loaded check mechanisms help the valve close positively when flow or pressure changes. Many models include serviceable internal parts and replaceable seats. That design can shorten maintenance time and reduce long-term ownership costs.
Manufacturers offer units in several materials, including bronze, brass, corrosion-resistant metals, and engineered plastics. Available sizes are designed to match common pipe diameters, pressure ratings, and potable-water system requirements.
Compact bodies, service access, and built-in test ports can make installation and inspection faster. The Asse 1022 Backflow Preventer fits tight spaces where larger assemblies cannot. Properly sized models can meet flow demands for common low-hazard applications.
Standards And Certifications Supporting ASSE 1022 Devices
ASSE standards define baseline performance tests, functional requirements, and operating thresholds. These tests verify reliable operation. Many listed products exceed minimum requirements, which may reduce failure risk and support longer maintenance intervals.
NSF/ANSI 61 certification confirms materials are safe for drinking water and helps prevent harmful contaminant leaching. UL/FM approvals can support confidence in durability, pressure resistance, and stress-tested performance. These listings give engineers, inspectors, and installers additional assurance when specifying equipment.
When combined with ANSI-accredited development, these approvals improve the Asse 1022 Dual Check Valve’s acceptance in plumbing codes and project specifications. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
Comparison With Related Standards And Products: ASSE 1013, ASSE 1012, ASSE 1024
This outline compares common backflow protection options to help match device features with risk and code needs. It explains practical differences among RPZ assemblies, double-check devices, and other dual-check products used in U.S. plumbing systems.
Device selection should start with a clear hazard-level assessment. ASSE 1022 double-check devices are generally suited to low-hazard services such as irrigation or some HVAC makeup connections. By contrast, Asse 1013 RPZ units are designed for high-hazard cross-connections where contaminants could create a health risk. Asse 1024 applies to reduced-pressure principle devices used where severe contamination risk may exist. Use Asse 1012 standards when specifying certain dual-check products or service-line applications.
How ASSE 1022 Differs From ASSE 1013 And ASSE 1024
ASSE 1022 double-check devices rely on two check valves, and where applicable shutoff valves, to control backflow in low-hazard uses. ASSE 1013 RPZ assemblies add a relief valve that vents to atmosphere under certain pressure conditions, creating a higher protection margin. Asse 1024 reduced-pressure principle devices use the same relief concept but apply to a broader set of severe contamination risks.
Testing frequency and complexity differ between these products. RPZ units under Asse 1013 require more rigorous annual and post-event testing with relief valve verification. ASSE 1022 double-check devices require periodic testing of the check mechanisms, generally with simpler procedures than RPZ assemblies.
When ASSE 1012 And Other Dual-Check Standards Apply
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Use this category when local code or the water authority accepts a dual-check style but specifies a different recognized standard beyond ASSE 1022.
Code requirements differ from one jurisdiction to another. Many municipalities that follow the 2018 UPC require ASSE 1013 RPZ assemblies for high-hazard cross-connections. Utilities may allow ASSE 1022 for low-hazard applications or specify Asse 1012-certified dual-check devices for certain service-line uses. Always confirm requirements with the local water authority before installation.
| Device Feature | ASSE 1022 Device | Asse 1013 (RPZ) | Asse 1024 | ASSE 1012 Device |
|---|---|---|---|---|
| Primary use | Low-hazard irrigation and selected HVAC makeup lines | High-hazard cross-connections and health-risk protection | Severe contamination risks requiring reduced-pressure principle | Certain service-line dual-check applications |
| Hazard protection | Low | Higher protection level | High | Application-dependent low-to-moderate protection |
| Relief valve | No relief valve | Required relief valve | Required relief feature | Usually no relief valve unless required |
| Typical testing | Periodic check valve testing | More rigorous annual RPZ testing | Annual reduced-pressure assembly testing | Inspection frequency set by local requirements |
| Typical applications | Low-hazard cross-connections where allowed | High-hazard systems involving toxic or harmful fluids | Severe contamination sources where health impact is possible | Specific service uses approved by local code or utility |
| Authority preference | Accepted in many low-hazard cases | Often required where contamination could affect health | Required for serious contamination threats | Selected where code or utility language specifically calls for it |
When comparing ASSE 1022 with RPZ assemblies, consider the hazard level, safety margin, and testing burden. The choice between RPZ and double-check protection depends on hazard classification, local plumbing code, and water authority rules. When in doubt, choose the higher protection level specified by the authority having jurisdiction.
Installation, Maintenance, And Code Compliance
Proper Asse 1022 installation begins with thorough planning. Place dual check valves in an easily accessible area and follow the manufacturer’s orientation guidelines. Maintain enough space for service, testing ports, and unions. This lets certified testers access fittings without unnecessary disassembly.
Use sound piping practices so the installation does not create a new cross-connection risk. Do not place the device where downstream cross-connections can bypass or undermine the protection. Install shutoffs, unions, drains, and service fittings as required by the manufacturer and local code. Keep unions and test cocks accessible for inspections, service work, and backflow testing.
Maintenance schedules are set by local regulations and water authority directives. Many areas require annual inspections and backflow tests by certified professionals. Detailed records of service and test results are important for proving compliance during audits and permit reviews.
Certified testers provide documented evidence that satisfies most regulatory requirements. AWWA M-14 can be used as a reference for inspection, maintenance, and backflow-prevention practices. Following recognized guidance can help reduce downtime and identify wear before it becomes a leak or failure.
Choose devices with recognized listings to simplify approval. Products with ASSE approvals and NSF/ANSI 61 installation ratings are often accepted more readily by plumbing inspectors. UL/FM compliance also matters for commercial and fire-protection connections where third-party recognition is important.
Before starting, identify the applicable plumbing code edition and local water authority requirements. Certain jurisdictions may require an RPZ rather than a dual check valve. Confirm permitting requirements and verify that the selected Asse 1022 installation meets local standards before work begins.
Create a consistent record-keeping process for the device. Store manufacturer cut sheets, test certificates, and repair invoices with a map of the device location. This makes future inspections easier and supports clear compliance during regulatory reviews.
Where To Buy And Product Selection Guidance
Choosing the right device means matching size, pressure rating, and materials to the plumbing system. Make sure the Asse 1022 Dual Check Valve fits the pipe diameter and peak flow. Check pressure ratings against maximum working pressure, surge conditions, and site-specific operating conditions.
Material compatibility is essential for potable water systems. Choose brass, bronze, or NSF/ANSI 61-certified plastics to avoid corrosion or leaching. Review the manufacturer’s chemical-resistance data for local water chemistry.
Verifying certifications can make approval and inspection easier. Confirm that the product lists ASSE 1022 compliance and NSF/ANSI 61 certification. If local codes demand UL or FM approval, confirm those marks before purchase.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers can provide genuine products, documentation, and warranty assistance. Installation Parts Supply is a reliable distributor that stocks certified units and can assist with model selection.
Warranty terms and pricing policies affect final cost. Check manufacturer warranty limits, authorized-sale requirements, and MAP pricing rules that may prevent online price display. Some stores require cart checkout to reveal final pricing while preserving full warranty through authorized sales channels.
How To Choose Materials
- Select an Asse 1022 Dual Check Valve model that matches pipe size, flow rate, and installation layout.
- Prefer components with NSF/ANSI 61 certification for potable systems.
- Verify pressure rating and surge tolerance for the Asse 1022 Backflow Preventer.
Trusted Suppliers
- Buy from certified dealers to ensure inspection documentation.
- Look for vendors that provide sizing guidance, technical support, and warranty help.
- Installation Parts Supply often provides certified stock and model guidance.
| Selection Point | What to Verify | Why It Matters |
|---|---|---|
| Size and Flow | Line diameter, expected flow, and model capacity data | Prevents pressure loss and ensures proper operation |
| Material compatibility | Brass, bronze, or NSF/ANSI 61-certified plastics | Protects potable water quality and resists corrosion |
| Working pressure rating | Rated operating pressure plus expected surge tolerance | Supports safe operation during everyday use and pressure spikes |
| Approvals and listings | ASSE listing, NSF/ANSI 61, and UL/FM marks where needed | Simplifies permitting and meets code requirements |
| Supplier | Supplier reputation, product authenticity, and technical help | Provides documentation and warranty help after purchase |
| Warranty and final cost | Manufacturer warranty details, MAP pricing policies | Prevents surprises and supports long-term ownership |
Final Thoughts
ASSE 1022 double-check valves can be dependable solutions for low-risk backflow prevention when approved by the local authority. The Asse 1022 Dual Check Valve uses two spring-loaded checks and materials that meet NSF/ANSI 61 and ASSE standards. This helps reduce contamination risks in irrigation and some HVAC makeup lines.
Correct device selection depends on hazard classification, code requirements, and water-authority approval. An Asse 1022 Backflow Preventer is appropriate for low-hazard scenarios where it is allowed. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Proper selection streamlines permitting and improves water-system safety.
To ensure backflow prevention compliance, follow manufacturer guidelines and local plumbing codes. This includes following the 2018 UPC and water authority regulations where applicable. Buy certified products from trusted suppliers or authorized dealers. Confirm ASSE listings, NSF/ANSI 61 certification, and UL or FM approvals when those marks are required.
Reliable backflow protection depends on correct selection, accurate installation, and routine maintenance. These steps, supported by certified devices and qualified testers, help safeguard potable water. They also support regulatory acceptance. Following these practices helps the Asse 1022 Dual Check Valve or other backflow solutions perform reliably.
